Drawings register

The job pressure

Nobody knows which sheet is current — RFIs cite yesterday’s revision.

Commercial PM and multi-trade jobs

On the job

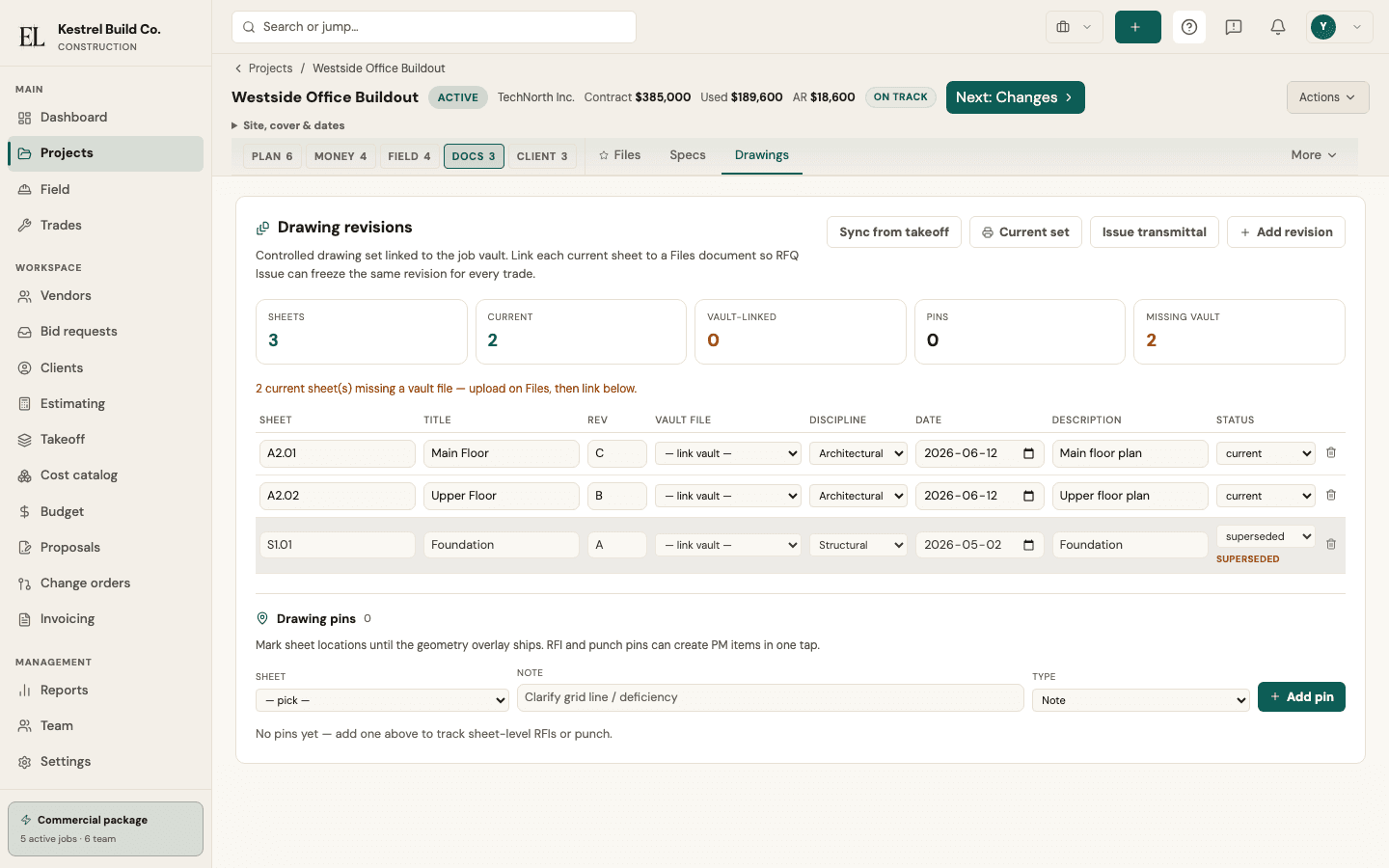

Nobody should RFIs yesterday’s revision. EstiLumina keeps a sheet / revision / supersede register linked to vault PDFs — current versus superseded is visible on the job.

Missing-vault pulses when a current sheet has no file. RFIs and packages can cite the set the crew should use.

This is a PDF register, not a CAD engine: 2D sheets you already issue, organized so the current set is honest.

How it works

1. 1

   Add sheets with revision, date, and status (current / superseded).

2. 2

   Link each sheet to a vault PDF on Files.

3. 3

   Supersede when a new revision arrives.

4. 4

   RFIs and packages reference the current set.

What you get

• Drawing register: sheet, rev, date, status
• Vault file links for current sheets
• Missing-vault pulse when a current sheet has no file
• Supersede path for revision control
• PDF register only — no CAD engine

Why teams subscribe

• Current vs superseded sheets are visible on the job
• Vault PDFs link to the sheet the crew should use
• RFIs and packages can cite the current set

Honest boundaries

• Not a CAD or BIM modeling engine.
• Not automatic sheet comparison that invents a new revision without you.
